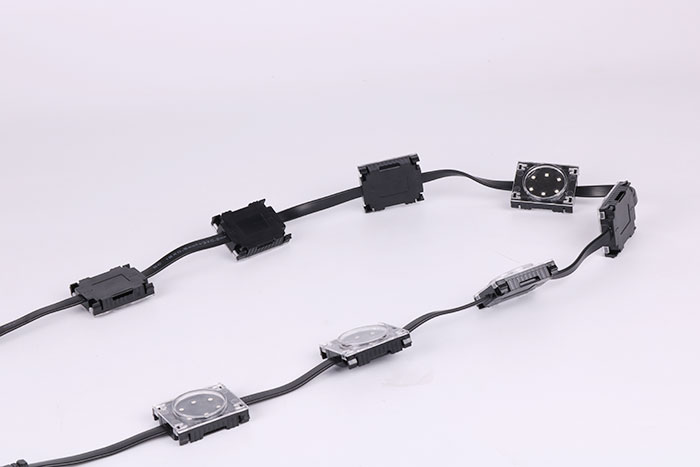

PX03 RGB pixel led light

PX03 RGB pixel led light

led pixel bar light, smd3535 leds, DC24V, Addressale dmx512, 8pixels per meter
  • Light Type :

    Led pixel Lights
  • Prodcut Code :

    CS-PX03
  • Chip Brand :

    CREE/ EPISTAR
  • Dimension :

    W40xL50.5xH14.5 mm
  • Material :

    ABS Body+PC cover
  • Rated Power :

    1.2W
  • Light Color :

    RGB
  • Rated voltage :

    24V DC
  • Protection level :

    IP65
  • Warranty time :

    2-3years
  • Product Details
  • Packing&Size

◆ Description
1. Ferris Wheel, Merry-Go-Round, Pirate Ship, Pendulum, Bumper Car, Rotor etc amusement rides, castles, carnival, funfair ground, attractions lighting.

2. Logo, signage, exposed luminous characters, channel letters, advertisement billboard.

3.Stage, nightclub, pub, KTV entertainment, Bars, Discos, building decorative lighting, bridge edge decoration Building contour,large shopping malls outside wall, Hotel, square street, outdoor AD signs, Logo and other places.

4. Display screen, painted screen, led light project, light engineer etc.

RGB pixel light,dmx512 pixel lights


◆ Dimensions

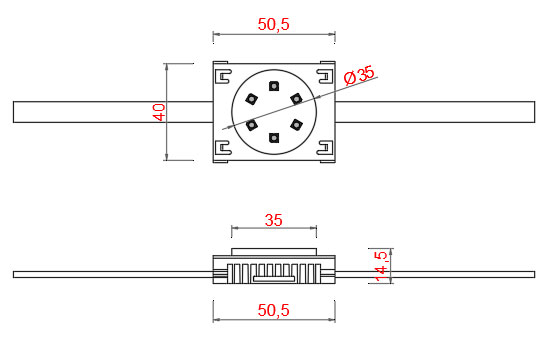

PX03 pixels led light dimensions


◆ Order Product Code

No.

ITEM NO

LED QTY

LED TYPE

Light Color

Voltage

Wattage

Control

Remarks

1

CS-PX03-DMX3

6PCS

3535SMD

RGB

DC24V

1.2W

DMX512

5-PIN plug

2

CS-PX03-DMX4

8PCS

3535SMD

RGB+W

DC24V

1.6W

DMX512

5-PIN Plug

3

CS-PX03-XX

6PCS

3535SMD

1800~6500K

DC24V

1.2W

On/Off

2-PIN plug






Remarks:

CS-PX03-XX   XX: Yellow(1800K-2000K), CW(6200K-6500K), W (4000K-4500K), WW(2700K-3000K), Green, Red, Blue.
