HOME / Products / Led point lights /

dmx led point lights

dmx led point lights

LED point lights is suitable for the building metope adornment, landscape lighting, can adapt to a variety of temperature and humidity of inside and outside environment for way: at the bottom of the lamps and lanterns.
  • Lamp type :

    Led Point Lights
  • Lamp model :

    CS-PS02
  • Chip brand :

    CREE/Epistar
  • Dimensions :

    ф85xH70mm
  • Material :

    Aluminum housing+PC cover
  • IP rating :

    IP65
  • Warranty :

    3 years
  • Product Details
  • Packing&Size

 Description

· LED point lights outdoor is die-casting aluminum lamp body, plastic-sprayed surface treatment.
· Light source adopts CREE/Epistar, can also specify other reliable brand, droop small high stability; For nearly 10 years of professional experience, unique drive technology, ensure the stability of each LED work.
· Waterproof design: special seal glue potting process, greatly reduced due to water damage of lamps and lanterns.
· LED point lights installation method: screw fixed directly, easy and convenient.
· Color effect, can choose the single color or RGB full color composite.


◆ Specifications

Optical

Lighting SourceSMD5050 3In1 LED

Chip BrandEpistarCREE

LED Quantity12 PCS

Beam Angle120°

Emitting ColorSingle Color or RGB

Led life>30000 hours

Color Temperature1600~6500K

CRI>80 Ra

Electrical

Working VoltageDC24V

Power Factor> 0.90

Power Consumption2.88W

Electrical ClassIII

Construction

Shell MaterialAluminum housing

CoverMilky PC Cover

Dimensionsф85*H70mm


Control

Lamp ControlDMX512TTL、N/A

Gray level:256x256x256

Other

Ambient Temperature-30°~+52°

IP ratingIP65

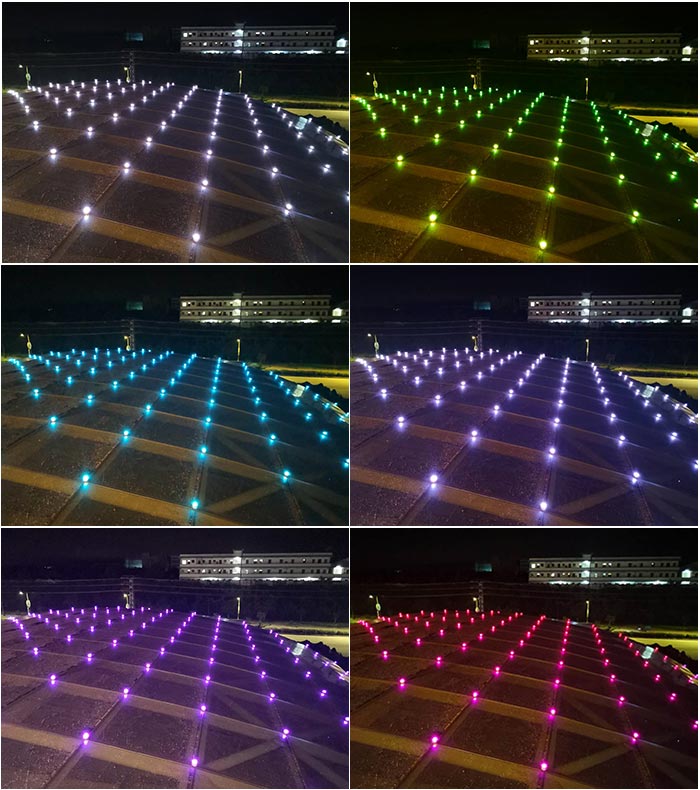

 Applications

·LED point lights is suitable for the building metope adornment, landscape lighting, can adapt to a variety of temperature and humidity of inside and outside environment for way: at the bottom of the lamps and lanterns.


 Order Product Code

No.

ITEM NO.

LED QTY

Light Color

Voltage

Wattage

Control

Dimensions

Remarks

1

CS-PS02-DMX

14PCS 5050SMD 3in1

RGB

DC24V

3.36W

DMX512

Ф85*H70mm

5-core plug

2

CS-PS02-RGBW

14PCS 5050SMD 4in1

RGBW

DC24V

4.2W

DMX512

Ф85*H70mm

5-core plug

3

CS-PS02-RGB

12PCS 5050SMD 3in1

RGB

DC24V

2.88W

TTL

Ф85*H70mm

4-core plug

4

CS-PS02-12Q

12PCS-5050 SMD

Single color

DC24V

2.88W

N/A

Ф85*H70mm

2-core plug

5

CS-PS02-18Q

18PCS-5050 SMD

Single color

DC24V

3W

N/A

Ф85*H70mm

2-core plug

6

CS-PS02-3W

3PCS 1W LED

Single color

DC24V

3W

N/A

Ф120*H80mm

2-core plug

7

CS-PS02-6W

6PCS 1W LED

RGB

DC24V

6W

DMX512

Ф120*H80mm

5-core plug
