outdoor linear led light bar

outdoor linear led light bar

Apply to buildings, bridges, parks, ancient buildings, outline lighting etc..
  • Lamp type :

    Led Linear Lights
  • Product code :

    CS-L3035
  • LED brand :

    Cree/ Osram/Epistar
  • Dimensions :

    W30*35*L1000mm
  • Material :

    Aluminum Body+Tempered Glass Cover
  • IP rating :

    IP65
  • Warranty :

    3 years
  • Product Details
  • Packing&Size
 Description

· LED linear cove lighting outdoor apply to facade lighting, Landscape lighting and architectural lighting;

· Material: Aluminum alloy housing, tempered glass cover.

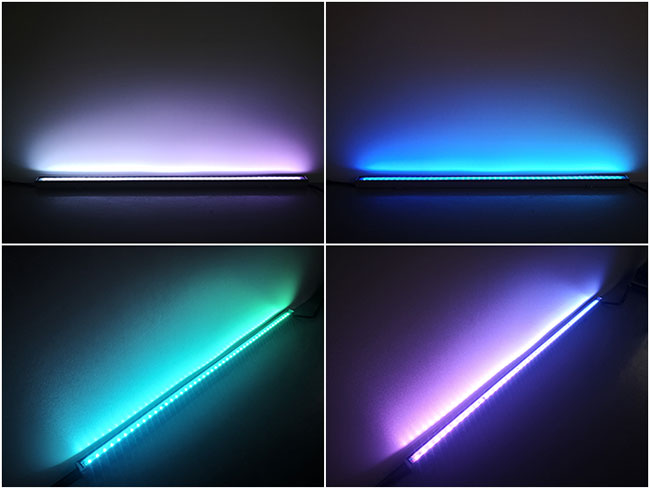

· Contour LED lighting for architecture outline is a direct view linear LED fixture ideally suited for creating long ribbons of color and color-changing effects. Can change all kinds of colors And produce gradients, flicker, scanning, chasing, running water and other effects.

· Monochromatic light can be selected with 1800~6500K , red light, blue light and green light.

dmx512 rgb led light bar

◆ Specifications

Optical

Lighting SourceSMD5050 3in1 led

Chip BrandEPISTARCREE

LED Quantity48 PCS

Beam Angle120°

Emitting ColorRGB

Led life>30000 hours

Segments8 pixels per meter

Waterproofing Methods:PU Sealant

Electrical

Working VoltageDC24V

Electric WireFive-core Plug

Rated Power:12W

Electrical ClassIII

Construction

Shell MaterialAluminum Housing

Cover:Tempered Glass Cover

Dimensions:W30*H35*L1000mm

Clips:Aluminum alloy

Control

Light ControlDMX512

Gray level:256x256x256

Other

Ambient Temperature-32°~+55°

IP ratingIP65


 Applications

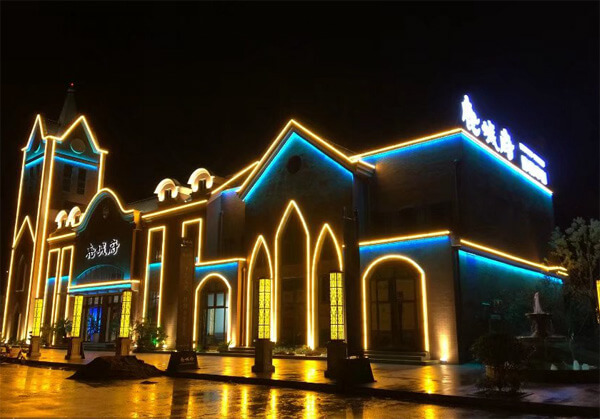

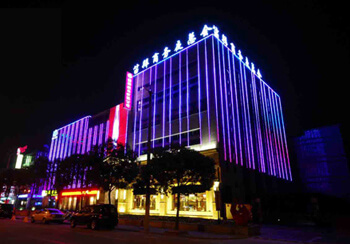

2700K outdoor line lights for facade lihgts dmx512 linear lights for facade lighting


 Order Product Code


No. ITEM NO LED QTY Light Color Voltage Wattage Control Pixels/Meter Remarks
1 CS-L3035-D8 48PCS-5050SMD 3in1 RGB DC24V 12W DMX512 8 Pixels 5-PIN Plug
2 CS-L3035-D8A 48PCS-5050SMD 4in1 RGBW DC24V 15W DMX512 8 Pixels 5-PIN Plug
3 CS-L3035-48Q 48PCS-5050SMD Single Color DC24V 11W N/A ------ 2-PIN Plug
4 CS-L3035-60Q 60PCS-5050SMD Single Color DC24V 13W N/A ------ 2-PIN Plug
