36W outdoor spot light

Lamp type :
Led spot Lights
Prodcut Model :
CS-HY119
Chip Brand :
CREE/ EPISTAR
Dimensions :
ф245*H350mm
Material :
Aluminum+Tempered glass cover
IP rating :
IP65
Warranty time :
3 years

Contact Now

Product Details
Packing&Size

Chip Brand: USA CREE/ EPISTAR
Rated power：8W/10W/20W/26W/38W
Material: Die-casting aluminum alloy + tempered glass
Light source: 1W high power led
LightsCircuit board: aluminum plate
Number of light sources: 6/9/18/24/36 PCS
Rated voltage：AC180~245V
Beam angle：5°,8°,12°,24°,36°
Light color: Single or RGB
Working temperature：-30°C-55°C
Protection level：IP65
Life span：30000hrs
Warranty time：2-3Years
Lamp body size：ф245*H350mm
Lamp body color: polyester powder fly ash
Butt plug: three-core rubber line
Production process: resin plastic potting waterproof
Single brightness: 80-90Lm / W
Electrical class: Class I
Luminous mode: always bright, colorful color
Rotation angle：160°

Control method：N/A,

No.	ITEM NO	LED QTY	Light Color	Lumens	Voltage	Wattage	Control	Dimension	Remarks
1	CS-HY116-6W	6CS-1W	Single/RGB	≤510LM	AC85~245V	8W	N/A	Ф135x200mm
2	CS-HY117-9W	9PCS-1W	Single/RGB	≤765LM	AC85~245V	10W	N/A	Ф135x200mm
3	CS-HY118-18W	18PCS-1W	Single/RGB	≤1530LM	AC85~245V	20W	N/A	Ф175x270mm
4	CS-HY119-24W	24PCS-1W	Single/RGB	≤2040LM	AC85~245V	26W	N/A	Ф215x300mm
5	CS-HY119-36W	36PCS-1W	Single/RGB	≤3060LM	AC85~245V	38W	N/A	Ф245x300mm

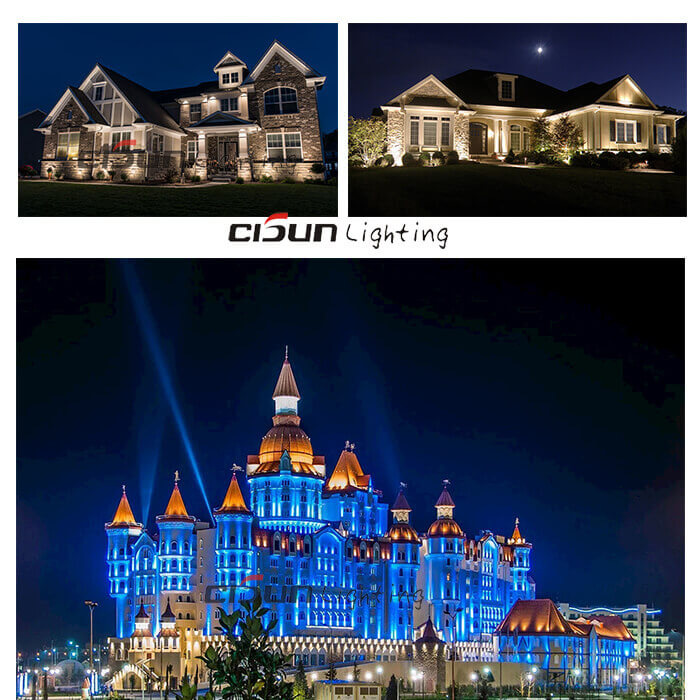

Application

outside led spotlights
