Light Type :
Led pixel LightsProdcut Code :
CS-PX08Dimension :
ф30.8xH17mmMaterial :
ABS+PC coverRated Power :
1.2WLight Color :
RGBRated voltage :
24V DCProtection level :
IP68Warranty time :
3yearsLED Digital Pixel Dot Lights DMX512 Addressable for Facade Lighting
◆ Description
· Using DMX signal transmission, manual/automatic addressing
· ABS flame retardant ABS production, more reliable installation performance.
· The installation structure is reasonable, use high-performance LED, good quality, uniform color, higher brightness.
· Weatherproof PU glue is used for potting, high waterproof performance,high and low temperature adaptability,Good corrosion resistance.
· LIGHT SOURCE COLOR: Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)
· CABLE: 2x0.35mm²+2x0.75mm² cable of Male & Female connector

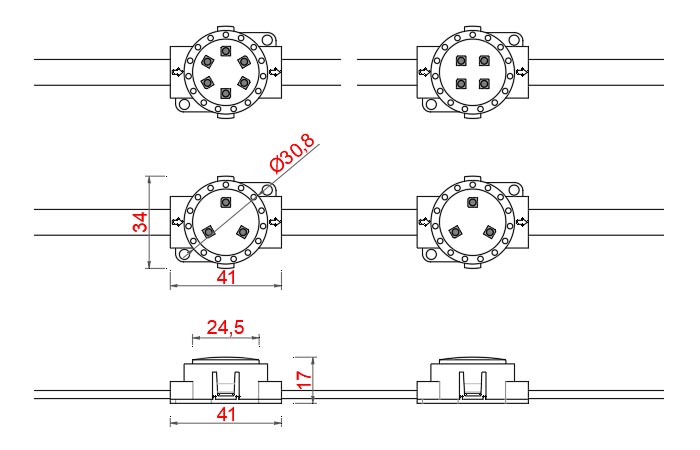

◆ Dimensions:



◆ Order Product Code
|
				 No.  |

				 ITEM NO  |

				 LED QTY  |

				 LED TYPE  |

				 Light Color  |

				 Voltage  |

				 Wattage  |

				 Control  |

				 Remarks  |

|
				 1  |

				 CS-PX08A-DMX  |

				 3PCS  |

				 3535SMD 3in1  |

				 RGB  |

				 DC12V  |

				 0.72W  |

				 DMX512  |

				 4-PIN plug  |

|
				 2  |

				 CS-PX08B-DMX  |

				 4PCS  |

				 3535SMD 3in1  |

				 RGB  |

				 DC24V  |

				 0.96W  |

				 DMX512  |

				 4-PIN Plug  |

|
				 3  |

				 CS-PX08C-DMX  |

				 6PCS  |

				 3535SMD 3in1  |

				 RGB  |

				 DC24V  |

				 1.2W  |

				 DMX512  |

				 4-PIN plug  |

|
				 4  |

				 CS-PX08C-XX  |

				 6PCS  |

				 3535SMD  |

				 1800~6500K  |

				 DC24V  |

				 1.2W  |

				 On/Off  |

				 2-PIN plug  |
