Diffusion PC Cover LED Linear Light Bar

Diffusion PC Cover LED Linear Light Bar

The linear light bar is suitable for the facade lighting, DMX addressable, RGB /RGBW color changing.
  • Lamp type :

    Led Linear Lights
  • Product code :

  • LED brand :

    CREE/ Luminleds /Epistar
  • Dimensions :

  • Material :

    Aluminum + PC Cover
  • IP rating :

  • Warranty :

    3 years
  • Product Details
  • Packing&Size

· LED linear cove lighting outdoor apply to facade lighting, Landscape lighting and architectural lighting;

· Material: Aluminum alloy housing, PC cover.

· Contour LED lighting for architecture outline is a direct view linear LED fixture ideally suited for creating long ribbons of color and color-changing effects. Can change all kinds of colors And produce gradients, flicker, scanning, chasing, running water and other effects.

· LED linear light bars control mode: On/Off, DMX control, SPI control (TTL).

· The lights can be selected with 1800~6500K, RGB , RGB+W.

◆ Specifications


Lighting SourceSMD5050 3in1 led


LED Quantity48 PCS

Beam Angle120°

Emitting Color1800~6500K /RGB /RGBW

Led life>30000 hours

Segments8 Pixels

Waterproofing Methods:PU Sealant


Working VoltageDC24V

Electric Wire2-PIN / 5-PIN Connectors

Power Consumption:10W,12W

Electrical ClassIII


Shell MaterialAluminum Housing

Cover:Diffusion PC Cover



Light ControlON/OFF, DMX ,SPI

Gray level:------


Ambient Temperature-32°~+50°

IP ratingIP65

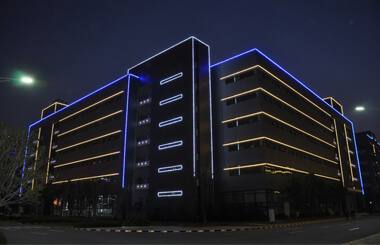

led linear light application led linear light project

 Order Product Code

No. ITEM NO LED QTY Light Color Voltage Wattage Control Pixels/Meter Remarks
1 CS-DL2345-48Q 48PCS-5050SMD Single Color DC24V 10W N/A ------ 2-core Connectors
2 CS-DL2345-60Q 60PCS-5050SMD Single Color DC24V 12W N/A ------ 2-core Connectors
3 CS-DL2345-D8A 48PCS-5050SMD
RGB DC24V 12W DMX512 8 pixels
5-PIN Connectors
4 CS-DL2345-D8B 48PCS-5050SMD RGB+W DC24V 14.4W DMX512 8 pixels 5-PIN Connectors

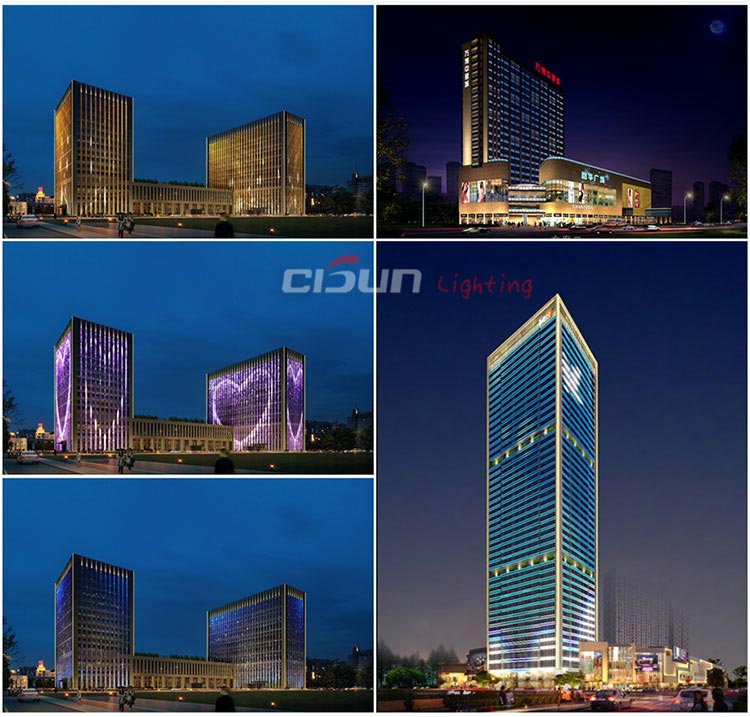

Architectural facade led lighting
