Addressable DMX512 RGB Led Strip Light

Addressable DMX512 RGB Led Strip Light

Programmable dmx512 control, DC24V, 10pixels per meter, RGB led strip lights
  • Lamp type :

    Led Strip Lights
  • Product code :

    CS-SLB10-SS
  • LED brand :

    Epistar
  • Dimensions :

    W13*H4*L5000mm
  • Material :

    FPCB+Silicone Casing Cover
  • IP rating :

    IP65
  • Warranty :

    2 years
  • Product Details
  • Packing&Size

 Description

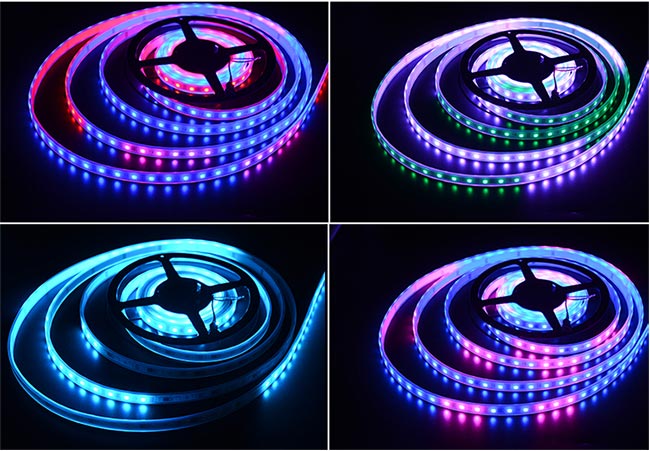

· Dmx512 RGB LED strip light

> Utra flexible, Easy to form a shap.

> Good quality FPCB board

> Safe to use: The tape lights work in 24V low voltage

> Waterproof IP65

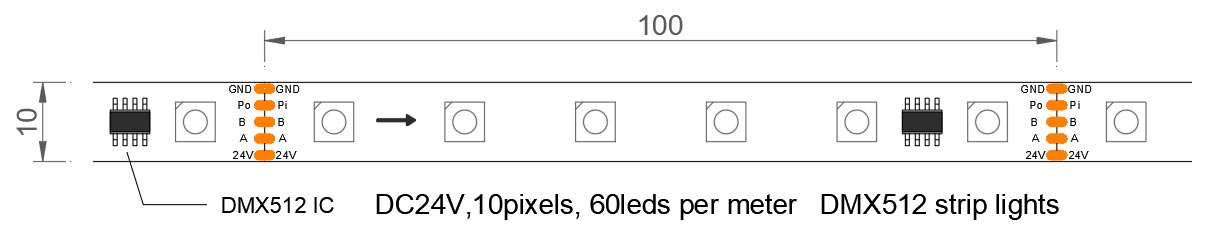

> DMX512, addressable, 60pcs leds per meter.You can cut by every 100MM if you need ( 6leds)

> 5 meters Per roll

DMX512 strip lights

dmx512 led strip lights


◆ Specifications

Optical

Lighting SourceSMD5050 3in1 led

Chip BrandEPISTAR

LED Quantity60 PCS / meter

Beam Angle120°

Emitting ColorRGB

Led life>30000 hours

Segments10 pixels / meter

Waterproofing Methods: Silicone Casing

Electrical

Working VoltageDC24V

Control IC:UCS512-C4

Power Consumption14.4W / meter

Electrical ClassIII

Construction

Light MaterialFPCB

CoverSilicone Casing

DimensionsW13*H4*L5000mm

Connector:2-Pin power Plug+ 3-PIN signal Plug

Control

Light ControlDMX512

Gray level:256x256x256 LV

Other

Ambient Temperature-32°~+50°

IP ratingIP65


 Applications

Billboards, parks, party, building outline, weddings, Garden


◆ Order Product Code

No.

ITEM NO.

LED QTY

LED TYPE

Light Color

Voltage

Wattage

Control

Pixels/Meter

Remarks

1

SLB10-RGB-NU

60PCS

5050SMD 3in1

RGB

DC24V

12W

DMX512

10 pixels

IP20

2

SLB10-RGBW-NU

60PCS

5050SMD 4in1

RGBW

DC24V

14.4W

DMX512

10 pixels

IP20

3

SLB10-RGB-SS

60PCS

5050SMD 3in1

RGB

DC24V

12W

DMX512

10 pixels

IP65

4

SLB10-RGBW-SS

60PCS

5050SMD 4in1

RGBW

DC24V

14.4W

DMX512

10 pixels

IP65








LED strip lights model No.
