Artnet to dmx controller TC808

  The TC808 controller is a controller with LCD digital interface display, which converts Ethernet signals into various pixel lamp chip signals. It adopts standard Ethernet protocol and supports Art-Net protocol. Eight output ports can control a variety of LED driver chips and support automatic addressing. The input network port can be directly connected to the computer network card, and can also be connected to a switch and a photoelectric converter. It is widely used in buildings, municipal lighting, stage scenery, entertainment venue decoration, etc.; it can achieve various running changes such as horse racing, running water, tailing, color painting, scanning, raindrops, etc. It has the advantages of convenient wiring and simple use; Single unit can be used in cascade connection.

Functions and features

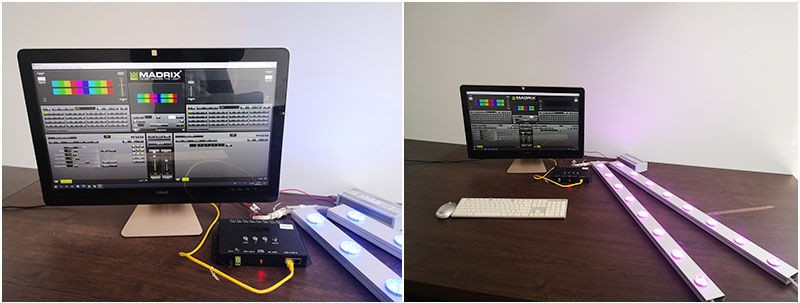

1. Support Art-Net protocol, can cooperate with mainstream software such as MADRIX.

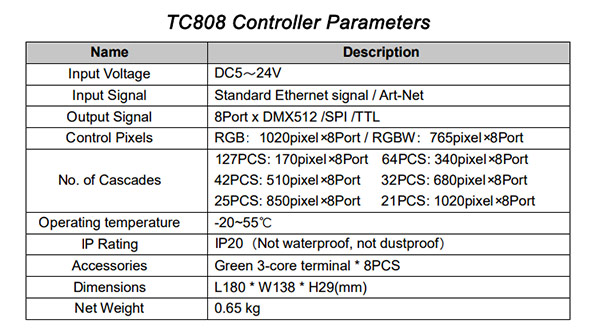

2. The controller have 8 ports, can control 8160 pixels at most. The Max number of control pixels for each port is 1020.
3. Address code for DMX chip.

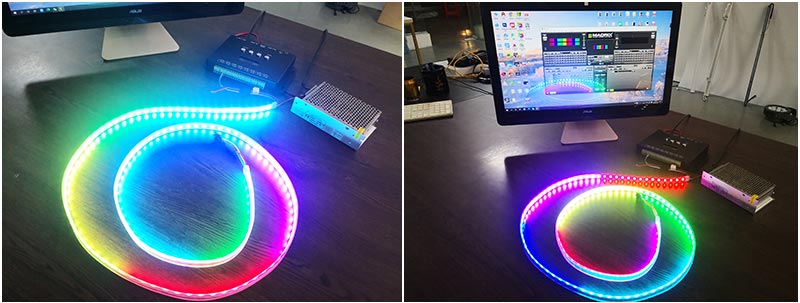

4. It can be directly connected to the computer network card for online use.

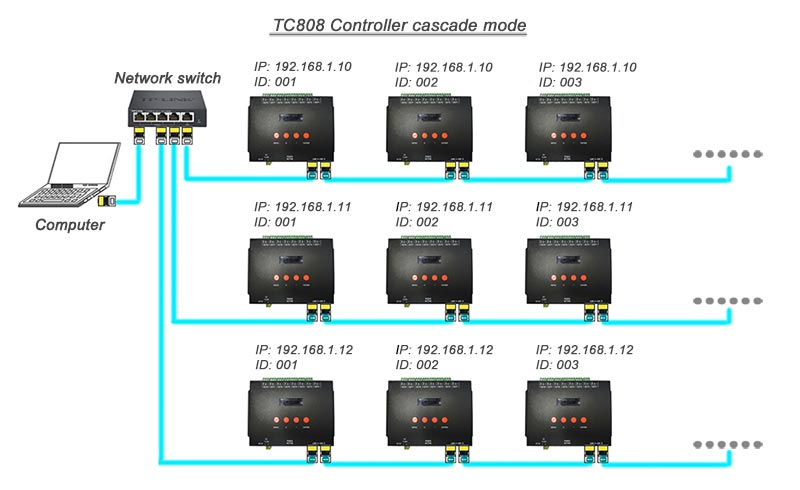

5. The controller can be used as a single unit, or multiple units can be cascaded to use, and supports multiple connections of switches.
6. Flexible use, sub-control cascade, can be interchanged arbitrarily, and has strong adaptability to lighting engineering.

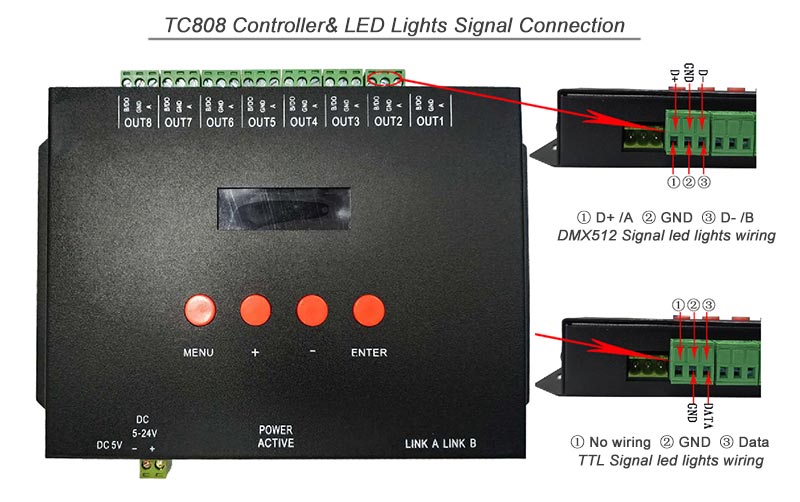

7. Enhanced TTL level signal or RS-485 differential signal output
8. Long transmission distance, the transmission signal adopts standard Ethernet T568B line sequence protocol, and the nominal distance is 100 meters.
9. Built-in test program,
10. Port ESD anti-static protection design
11. Power input interface reverse connection protection design

Controllable IC type & IC model

TEXT
