BF12B DMX Led Controller With Video Player System

BF12B DMX Led Controller With Video Player System

The host-controller MR-BF12B can use real time with computer or offline control.
  • Product model :

  • Output port :

    Link A/Link B
  • Protocol :

    DMX512 or PWM
  • Control mode :

    Host controller
  • Product Details
  • Packing&Size
 Product model  MR-BF12B / 3F12B
 Maximum control pixels  15,000
 Power input  AC 100V~240V;50/60Hz
 Color support capacity  24-bit true color
 SD card maximum capacity  32G,99 program files maximum
 Power consumption  15W


System Features

1.The system may support 150,000 points in offline. It may meet project needs of clients.

2.The system supports automatic, regular, preset programs play.

3. The controller is equipped with keys and External Remote Control; the episode selection, overall brightness adjustment, white balance adjustment and playback speed adjustment etc.

4. Support offline one key fixed; clearing sub-controller ID number; it is convenient to use on field.

5. Support switch parallel program; reduce system cascade chain length; improve stability.

6. Support dual backup; Failure of one controller and net wire broken will not influence operation.

7. Tricolor independent brightness control may adjust white balance precisely, simple and effectively.

8. Support four-color lighting: energy saving, environmental and pure color.

9. Adopt Ethernet interface and UDP network protocol, the maximum transmission distance is 100 meters.

10.The LCD display module timely display the controller parameters and status.

11. SD card storage, support maximum 32G, preset maximum 255 program files.

12. Support remote online download and offline program update of multiple offline host controllers.

13. The built-in animation test program may help customer to debug and apply in project.

14. Support mixture of different type lamps and different protocols lamps (including DMX512 lamps), strong compatibility.

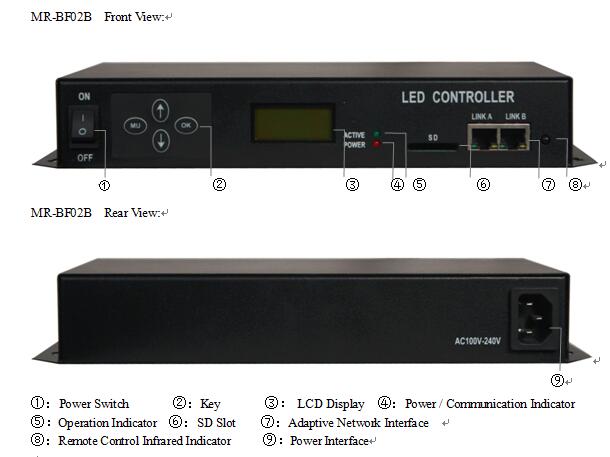

MR-3F12B/BF12B/BF02B View

MR-3F12B controller

Mr-BF series main controller

 Related products

MR-228DW DMX SUB Controller  MR-3F12B Main LED controller

              MR-228 SUB Controller                              MR-3F12B Main Controller

 Packaging Details: 1PC in 1 box

dmx512 led controller

 Box Size: 32.5 x 24.5 x 5.4 CM

 Package weight: 1.5 KG

 Packaging QTY: 6PCS per Carton

 Packaging Materials: Carton

 Delivery Time Shipped in 10 days after payment
