Computer online lighting main controller

Computer online lighting main controller

XB-Z1 is an offline/online/GPS satellite synchronization led lights controller.
  • Product Model :

    XB-Z1
  • Output Port :

    NET 1/ NET 2
  • Protocol :

    DMX512/ TTL/ Artnet
  • Control Mode :

    Main-Controller
  • Dimenssion :

    L247*W141*H46 mm
  • Product Details
  • Packing&Size
Salient features:
1. Configurable BTS synchronization function, integrated offline playback function, easy to use and reliable.

2. Can realize any timing, multi-level encryption function.


General features:
1. The playback content is stored in the SD card. The SD card can store up to 32 effect files. The SD card capacity supports 4GB - 32GB.  It supports single-effect playback, effect loop playback, and the effect playback speed up and down.
2. The controller adopts the standard TCP/IP network protocol, and the signal transmission is more stable.
3. It can be used with our T-780 for offline use, support up to 100,000 pixels or 50 T-780 controllers.
4. The main control and the main control can be cascaded, and the cascading distance is 100 meters.
5. Support timing, can broadcast programs regularly at week, time, and holidays.
6. Support a variety of encryption methods.

7. The IC controller for DMX lights comes with a write address function; in addition, with our LedEdit-K V4.6 or higher software, you can perform one-click address writing function setting, long press SET to realize it.


Remarks:

1. The 50,000-point speed of the offline main control lamp can reach 22 frames/second, and the speed of 100,000 points can reach 15 frames/second. (The above parameters take the 1903 protocol IC data as an example. Different ICs will exist. difference).

2. The offline version of the regular version has no BTS base station synchronization function. Please request the salesmen if you need this.


Support SUB-controller:
T-500K/T-700K/T-780/T-800K


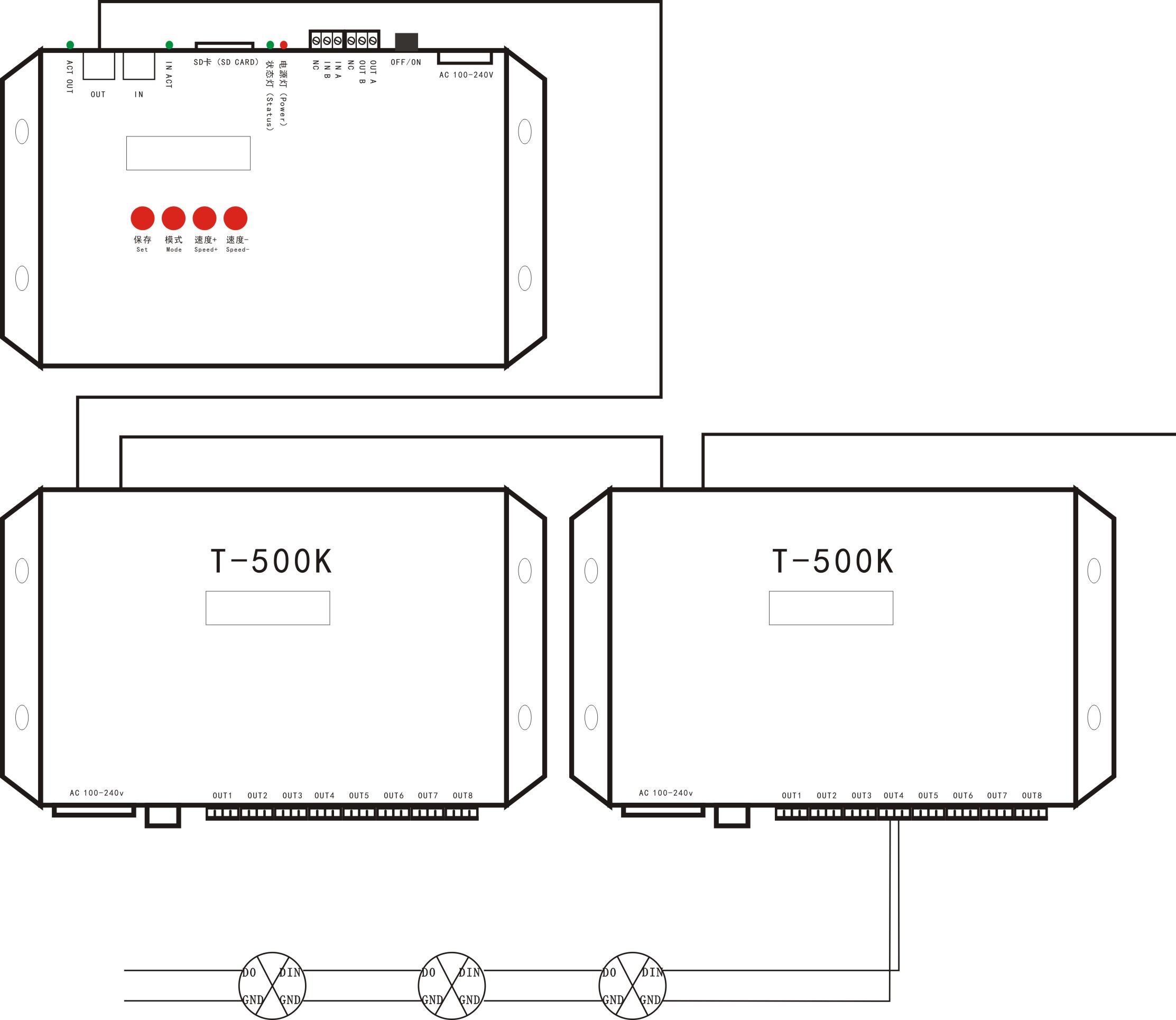

Product diagram



1Cascade terminal

2Power indicator

3Status indicator

4BTS antenna

5SD card slot

6BTS signal indicator

7Network port indicator 1

8Network port 1

9Network Port 2

10Network port indicator 2

11SIM card slot

12Power interface

13Switch


1.Button meaning:

BUTTON

MEANING

SET

Save the present status

MODE

Switch file

SPEED+

Speed up

Press SPEED+ and SPEED- at the same time to enter the file loop playback mode. At this time, an * will appear after the program, indicating that the file loop mode has been entered.

SPEED-

Speed down










2. Port definition

Power supply

AC110-240V input

IN A

GPS sync signal A/cascading signal input A

POWER

Power indicator

IN B

GPS sync signal B/cascading signal input B

SYNC

Status indicator

OUT A

Cascading signal output A

NET1

Cascading signal input

OUT B

Cascading signal output B

NET2

Cascading signal output

BTS signal light

BTS signal light


3. Speed grade corresponding to frame rate:

Speed grade

Frame/Second

Speed grade

Frame/Second

1

4 frame

9

14 frame

2

5 frame

10

16 frame

3

6 frame

11

18 frame

4

7 frame

12

20 frame

5

8 frame

13

23 frame

6

9 frame

14

25 frame

7

10 frame

15

27 frame

8

12 frame

16

30 frame



4. XB-Z1 Display vocabulary summary

Display vocabulary

Meaning

Display vocabulary

Meaning

BTS turn OFF

BTS mode OFF

Has expired!

Has expired

BTS turn ON

BTS mode ON

Controller Err!

Controller does not match (replace the encrypted offline master with an unencrypted offline master)

Please restart

Restart

Pwd not match!

Password not match

------ID

Set the master control ID number

No Password!

No password

Writing address

Writing the address

Pwd not right!

Password not correct

Writing finish!

Writing finished

Clear Pwd OK!

Clear password sucessfully

No SD Card

No SD card

Num

Encryption times

Set Password OK

Set password successfully

Password is OK!

Password correct

Can't repeated!

Cannot repeat encryption

Password exist!

Password exist

Contact factory!

Pls contact the factory

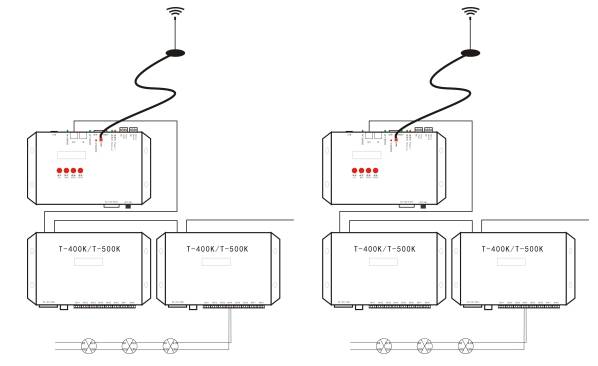

Single master control



Multiple master wireless synchronization control



Multiple master online offline integrated control
