DMX512 led wall washer light

DMX512 led wall washer light

We carry a wide variety LED Wall Washers for LED Lighting projects. Select from our RGB Color Changing LED Wall Washers or use a single color White or Warm White LED Wall Washers. All of our LED Wall Washers are capable of projecting light over 2meters. Each LED Wall Washer can be controlled by PWM Dimming or DMX Control.
  • Lamp type :

    Wall wash lights
  • Lamp model :

    CS-WS5555
  • Chip brand :

    CREE/Epistar
  • Dimensions :

    W60xH130xL1000mm
  • Material :

    Aluminum Body+Tempered Glass Cover
  • IP rating :

    IP65
  • Warranty :

    3 years
  • Product Details
  • Packing&Size

 Description

· New heat releasing structure, a unique heat releasing technology.
· Revolving bracket,it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
· Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.
· High strength T6063 aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.
· A variety of color temperature choose (1700K-6500K).
· RGBW 4 in 1 color changing, narrow beam angle projecting.


◆ Specifications

· Chip Brand: Epistar, CREE, OSRAM
· Rated power: 24W/36W/48W
· Material: aluminum housing+ tempered glass cover
· Light source: 1W/3W/4W high power led
· LED QTY: 12pcs/24pcs/36pcs
· Rated voltageAC85~245V/DC24V
· Beam angle10x60°,,15°,25°,30°,45°,60°,90°(Various lenses)
· Light colorSingle, RGB, RGBW
· Working temperature-30°C-55°C
· IP ratingIP65
· Life span30000hrs
· Warranty2-3Years

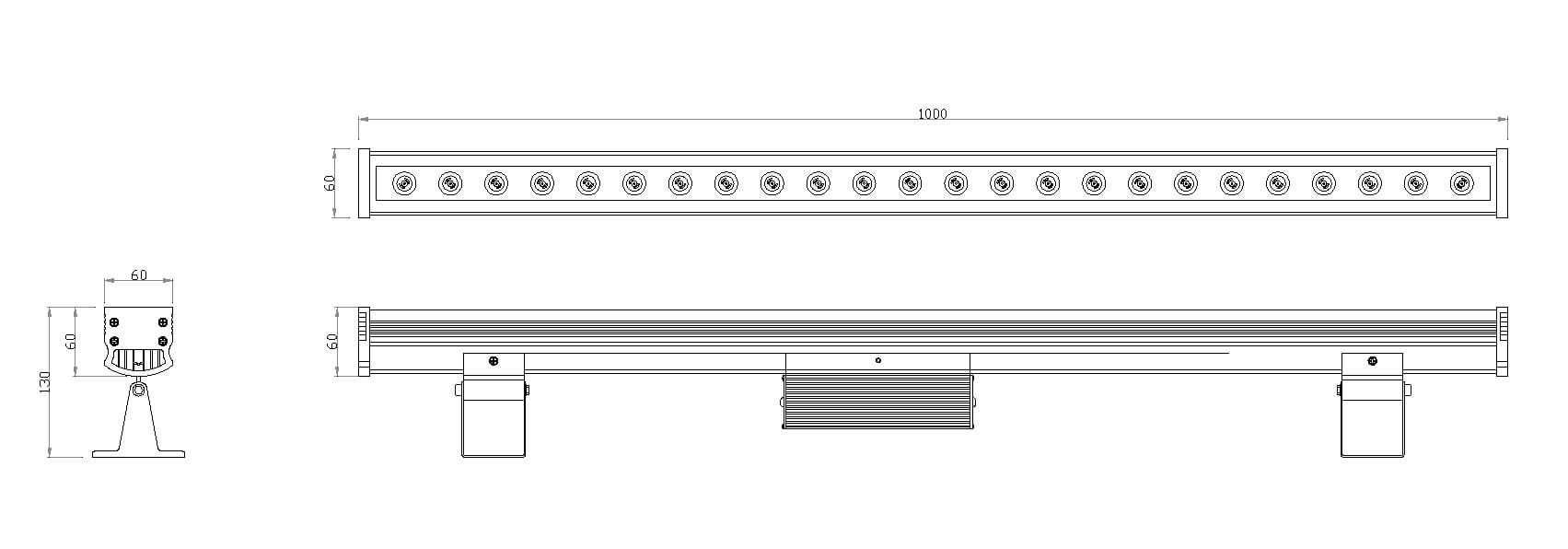

· DimensionsW60*H130*L1000mm
· Lamp body color: Customized
· Single brightness80-90Lm / W
· Electrical classClass III(24V)
· Rotation angle160°

· Control methodN/A,DMX512



 Applications

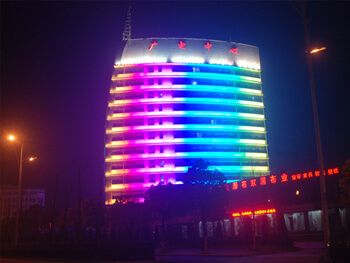

LED wall washer lights apply to buildings, bridges, parks, ancient buildings, flood lighting etc..

DMX led wall washer lights for building facade lighting rgb wall washer lights for bridge flood lighting


 Order Product Code

No.

ITEM NO

LED QTY

LightColor

Lumens

Voltage

Wattage

Control

Dimension

Remarks

1

CS-WS5555-24W

24PCS 1W

Single

≤2040LM

AC85~260V

24W

N/A

W60x130xL1000mm



2

CS-WS5555-36W

36PCS 1W

Single

≤3060LM

AC85~260V

36W

N/A

W60x130xL1000mm



3

CS-WS5555-D24

24PCS 1W

RGB

------

DC24V

24W

DMX512

W60x130xL1000mm

1pixels

4

CS-WS5555-D36

36PCS 1W

RGB

------

DC24V

36W

DMX512

W60x130xL1000mm

1pixels

5

CS-WS5555-RGBW

12PCS 4W

RGBW

------

DC24V

48W

DMX512

W60x130xL1000mm

2pixels


      DMX512 RGB led wall washer Video link :  https://www.facebook.com/watch/?v=306487489936686
