K8000C LED pixel controller

K8000C LED pixel controller

K-8000C RGB led light pixel controller supports DMX signal and SPI signal, The K-8000C controller has 8 ports output , each port can control Max 1024 pixels for SPI;and supports cascade synchronization of multiple controllers.
  • Product model :

    K-8000C
  • Output port :

    8 Ports
  • Protocol :

    SPI / DMX512
  • Software :

    LEDedit
  • Control mode :

    Cascade Main controller
  • Product Details
  • Packing&Size
◆ K-8000C system features

1. Program software: Lededit, Lededit-K

2. 32 to 65536 degree Gray control, Gamma correction procession handle.

3. Support various point, line light source, and all kinds of rules and specific shaped handle.
4. The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
5. The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
6. The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
7. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
8. For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

9. Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

10. Enhanced 485 TTL and 485 differential (DMX) signal output.

11. The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Notes:
> The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference).
> International standard DMX512 (1990 agreement) maximum support 512 pixels. When the load is international standard 170  pixels, the speed can reach up to 30 frames / sec, 340 pixels speed is about 20 frames / sec, when 512 pixels speed is about 12 frames / sec.
> Timing (holidays) Play Global Wireless GPS synchronization, control station channel distributor, please contact the salesman or technical support staff for more information.

K-8000C pixel lighting controller


◆ Support chips(PC Software Select K-8000-RGB)

1. UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;SM16703,16709,16712;WS2811;INK1003;

   LX3203,1603,1103;GS8205,8206;SK6812(Support up to 1024*8=8192 pixels)

2. SM16716,16726(Support up to 1024*8=8192 pixels)
3. P9813(Support up to 1024*8=8192 pixels)
4. LPD6803(Support up to 1024*8=8192 pixels)
5. LX1003,1203(Support up to 1024*8=8192 pixels)
6. WS2801(Support up to 1024*8=8192 pixels)
7. LPD1886(Support up to 1024*8=8192 pixels)
8. TM1913(Support up to 1024*8=8192 pixels)
9. TM1914(Support up to 1024*8=8192 pixels)
10. P9883,P9823(Support up to 1024*8=8192 pixels)

11. DMX(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

12. DMX 500K(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
13. DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
14. DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

Remarks
> If support RGBW 4 channels lights should select K-8000-RGBW.
> If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.


◆ Application Method

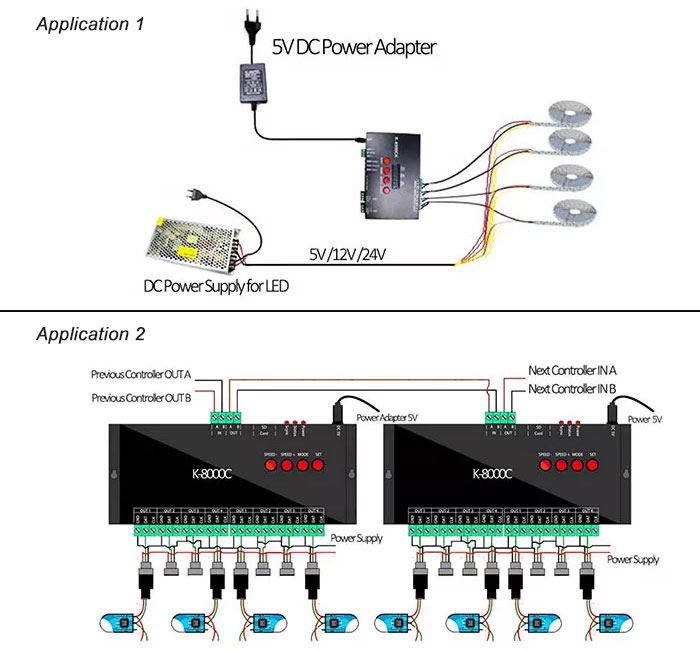

K-8000C led lighting controller application


◆ Order Product Code

No.

Model No.

Power

Voltage

Protocol

Applicable IC model

Control Mode

1

K-8000C

15W

DC5V

SPI / DMX

UCS1903, UCS1912,WS2811,SM16703,TM1804,etc

UCS512,SM512,TM512,etc

Cascade controller

2

K-8000D

15W

DC5V

DMX512

UCS512,SM512,TM512,etc

Cascade controller


Packaging Information

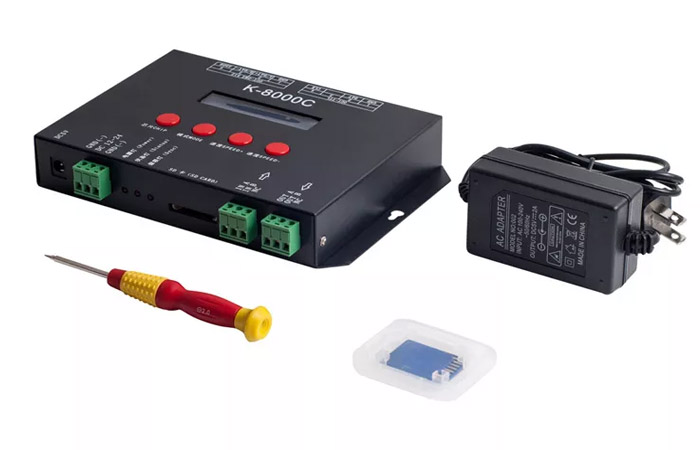

Controller: 1 set
SD card: 1 pcs
Power converter: 1 pcs
Screwdriver: 1pcs
Packing size:  X   X  CM
Packing material: carton

Delivery time: 3 days

Warranty: 2 years

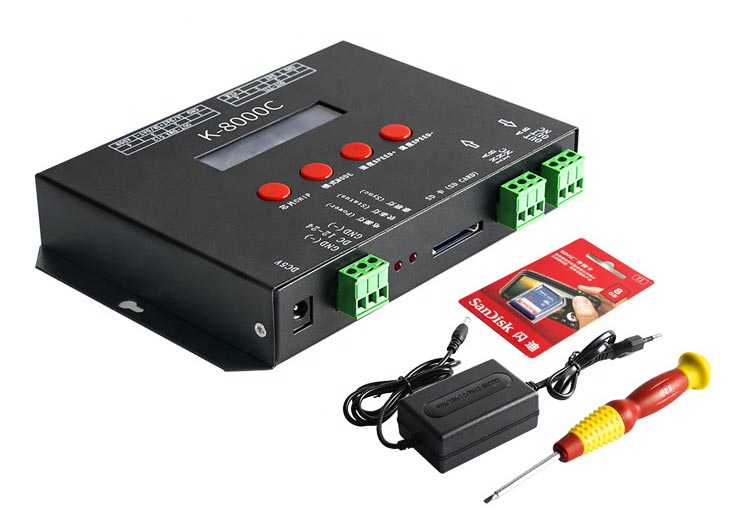

K-8000C controller

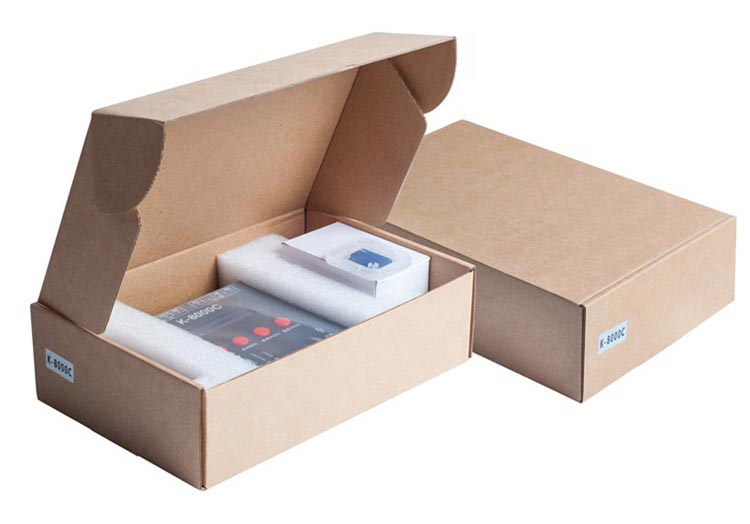

K-8000C packing
