LED Architectural Linear Fixtures L2830

LED Architectural Linear Fixtures L2830

DMX512 full color control contour light for exterior wall.Suitable for all building contour decorative lighting.
  • Lamp type :

    Led light bar
  • Product code :

    CS-L2830
  • LED brand :

    Cree/Osram/Epistar
  • Dimensions :

    W28*30*L990mm
  • Material :

    Aluminum Body+Tempered Glass
  • IP rating :

    IP65
  • Warranty :

    2-3 years
  • Product Details
  • Packing&Size
 Description

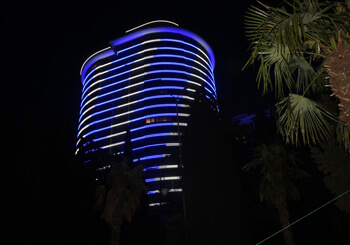

· LED linear cove lighting outdoor apply to facade lighting, Landscape lighting and architectural lighting;

· Material: Aluminum alloy housing, tempered glass cover.

· Contour LED lighting for architecture outline is a direct view linear LED fixture ideally suited for creating long ribbons of color and color-changing effects. Can change all kinds of colors And produce gradients, flicker, scanning, chasing, running water and other effects.

· Monochromatic light can be selected with 1800~6500K , red light, blue light and green light.


◆ Specifications

Optical

Lighting SourceSMD5050 3in1 led

Chip BrandEPISTARCREE

LED Quantity48 PCS

Beam Angle120°

Emitting ColorRGB

Led life>30000 hours

Segments8 pixels per meter

Waterproofing Methods:PU Sealant

Electrical

Working VoltageDC24V

Electric WireFive-core Plug

Rated Power:12W

Electrical ClassIII

Construction

Shell MaterialAluminum Housing

Cover:Tempered Glass Cover

Dimensions:W28*H30*L1000mm

Clips:Aluminum alloy

Control

Light ControlDMX512

Gray level:256x256x256

Other

Ambient Temperature-32°~+55°

IP ratingIP65


 Applications

two color led linear light bar Rgb led linear light bar


 Order Product Code

No. ITEM NO LED QTY Light Color Voltage Wattage Control Pixels/Meter Remarks
1 CS-L2830-D8 48PCS-5050SMD 3in1 RGB DC24V 12W DMX512 8 Pixels 5-PIN Plug
2 CS-L2830-D8A 48PCS-5050SMD 4in1 RGBW DC24V 15W DMX512 8 Pixels 5-PIN Plug
3
CS-L2830-D12 48PCS-5050SMD 3in1 B+W DC24V 12W DMX512 12 Pixels 5-PIN Plug
4 CS-L2830-48Q 48PCS-5050SMD Single Color DC24V 11W N/A ------ 2-PIN Plug
5 CS-L2830-60Q 60PCS-5050SMD Single Color DC24V 13W N/A ------ 2-PIN Plug
