Meanwell 480W Waterproof Power Supply

Meanwell 480W Waterproof Power Supply

HLG-480H, 24V/36V/48V DC, 480W, High-quality Waterproof Power Supply, Input: AC90~305V
  • Power type :

    Waterproof Power Supply
  • Product model :

    HLG-480H
  • Voltage :

    90-305VAC
  • Output :

    24V/12V(DC)
  • Size :

    L262xW125xH43.8mm
  • Product Details
  • Packing&Size

HLG-480H operates from 90~305VAC and offers models with different rated voltage ranging~between 24V and 54V.

Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series isable to operate for -40°C~ +90°C
case temperature under free air convection.
The design of metal housing andIP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
HLG-480His equipped with various function options, such asdimming methodologies, so as to provide the optimal designflexibility for LED lighting system.


 Features

· Constant Voltage + Constant Current mode output

· Metal housing with class I design

· Built-in active PFC function

· IP67 / IP65 design for indoor or outdoor installations

· Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off, isolated design) ; smart timer dimming; junction box

· Typical lifetime> 62000 hours

· 7 years warranty

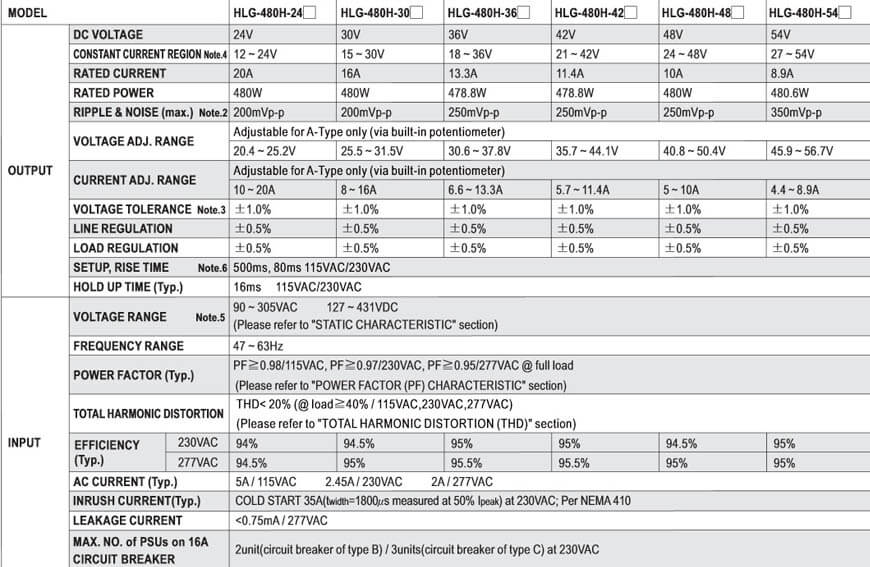

HLG-480H Specification

 Packaging Details: 1PC in a box

 Good's Weight: 2.8KG /1PCS

 Packaging QTY: 4PCS per Carton

 Package weight: 12.2KG /4PCS

 Packaging Size: (No data)

 Packaging Volume: 0.58CUFT

 Packaging Materials: Carton

 Delivery Time Shipped in 10 days after payment
