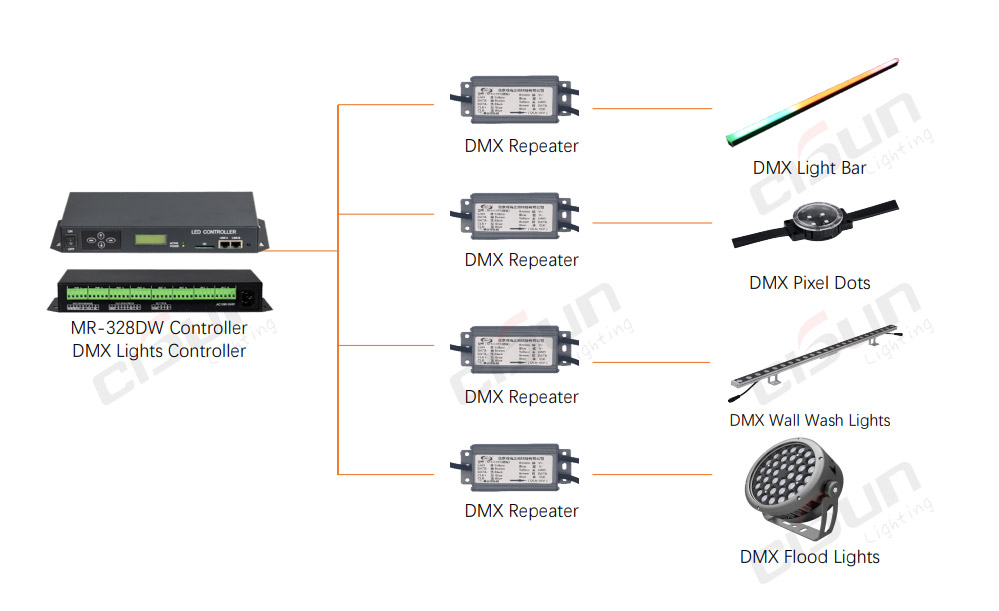

MR 328DW DMX512 LED controller All In One Lights Controller

I. Features

1. MR-328DW Standard USITT DMX512/1990 General Grotocol and Extended Protocol；

2. MR-328DW Supports TTL Serial Return to Zero Protocol；

3. Controller Signal OutPut ADRI/PO Terminal Can Achieve DMX512 Channel Automatic Addressing，
    Support DMX512AP-N / NB, UCS512, MY7221, WS2821 and Other Driver Chips；

4. MR-328DW Support Address Line Differential Signal, Can Be Used for Long Distance;

5. The System Supports Automatic, Timing, Holiday Preset Effect Playback;

6. Independent Brightness Control of 3 Primary Colors, Easy to Adjust White Balance；

7. Support R,RB,RGB,RGBW,RGBWY, and Multi-Color Mixing Control;

8. Support 32-65536 Grayscale 16Bit, Support 262144 Grayscale, Restore image Details;

9. Accurate Gamma Correction Algorithm, in Line With Human Visual Sense;

10. Support Opening and Closing the Function of Writing DMX Addresses and Parameters;

11. Support 120Hz Frame Rate to Ensure High-definition Display and 3D Requirements;

12. Support Buttons and External Remote Control, Program Selection, Brightness Adjustment,
      White Balance Adjustment, Playback Speed Adjustment, etc；

13. LCD Display Module Displays Controller Parameters and Status in Time;

14. SD Card Storage, Can Support 64G, Can Preset 99 Program Files;

15. 8-Port OutPut, Single Channel 512 Channels, ExpansionNeeds to BeTested by Itself;

16. Support Device Port Anti-interference and Leakage Design;

17. Support Overcurrent and Overvoltage Protection, Can run for a Long Time;

18. Support Severe Working Environment -40℃-80℃, Normal Operation Without Failure.

19. Built-in Animation Test Program；

20. Supports Offline and Online Firmware Upgrades.

II. OutPut Port Definition

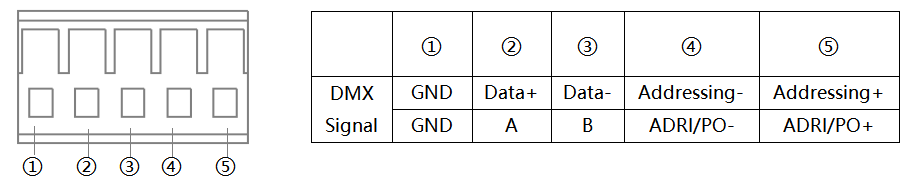

MR-328DW Controller Uses 8-Port 5Pin Terminal Interface OutPut Signals.

5Pin Terminals Sort Sequentially From Left to Right， As Shown Below：

Note: The Signal Terminal ④⑤ is a Differential Signal. When The Differential OutPut of The Addressing Line is Not Used, Only Connect ⑤ (Addressing +).

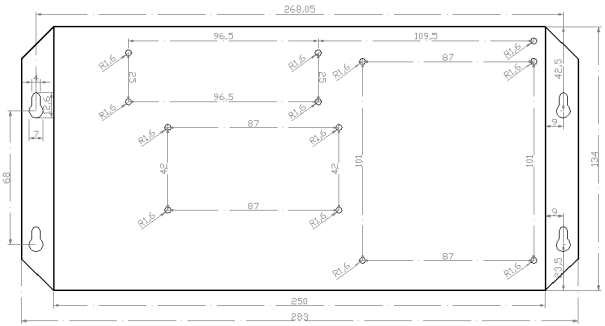

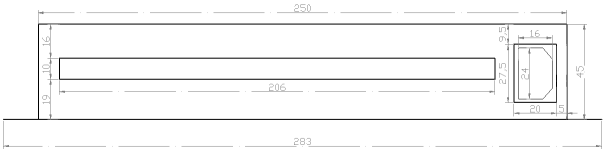

III. Controller Three View Size Chart

Remark：Above Three Views The Size Unit is mm.

IV. Basic Parameter Table
