MR2216D 16Ports DMX Sub Controller

MR2216D 16Ports DMX Sub Controller

DMX RGB /RGBW LED Lights Controller, 16 Ports DMX SUB Controller
  • Product Model :

  • Output Port :

    16 Ports
  • Protocol :

  • Power Input :

  • Rated Power :

  • MAX Upload :

  • Dimensions :

  • Control Mode :

  • Product Details
  • Packing&Size


1. MR-2216D Standard USITT DMX512/1990 General Grotocol and Extended Protocol

2. MR-2216D Support Unlimited Cascade Transmission, Unlimited Number;

3. Independent Brightness Control of 3 Primary Colors, Easy to Adjust White Balance;

4. Support R,RB,RGB,RGBW,RGBWY, and Multi-Color Mixing Control;

5. Support 32-65536 Grayscale 16Bit, Support 262144 Grayscale, Restore image Details;

6. Accurate Gamma Correction Algorithm, in Line With Human Visual Sense;

7. Support Opening and Closing the Function of Writing DMX Addresses and Parameters;

8. Support 120Hz Frame Rate to Ensure High-definition Display and 3D Requirements;

9. Using Ethernet Interface and UDP Protocol, The Distance is 100 Meters;

10. LCD Display Module Displays Controller Parameters and Status in Time;

11. Support The Device ID Number Data Flow Sequence and Fixed Arrangement;

12. Two RJ45 Ports, Support Mixed Cascading; Automatic Software Display Status;

13. Support IP Grouping Function, use Switch Parallel Scheme

14. 16-Port OutPut, Single Channel 512 Channels, ExpansionNeeds to BeTested by Itself;

15. Support Backup, Single Device Failure or Network Cable Disconnection Has no Effect;

16. Support Device Port Anti-interference and Leakage Design;

17. Support Overcurrent and Overvoltage Protection, Can run for a Long Time;

18. Network Adaptive or Mandatory 100M Can be Set to Support More Loading;

19. Equipment Network Port, Port OutPut, Surge Protection: 1.5KV;

20. Support Severe Working Environment -40℃-80℃, Normal Operation Without Failure.

21. Supports Online One-Click Upgrade of Device Firmware.

II. Output Port Definition

MR-2216D Controller Uses 16-Port 3Pin Terminal Interface OutPut Signals.

3Pin Terminals Sort Sequentially From Left to Right, AShown Below:

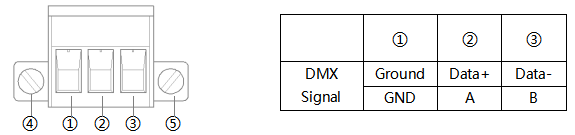

DMX Wiring definition

Remark:④⑤ is 3Pin Port Fixing Screw Holes, Not a Signal Terminal.

III. Controller Three View Size Chart

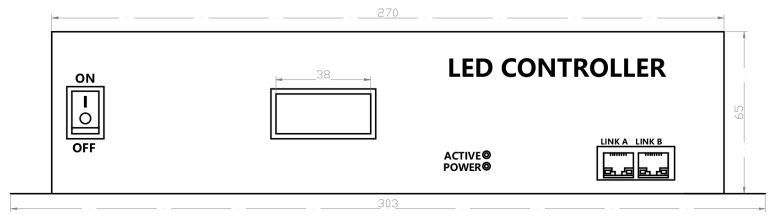

MR-2216D Front View

MR-2216D Front View

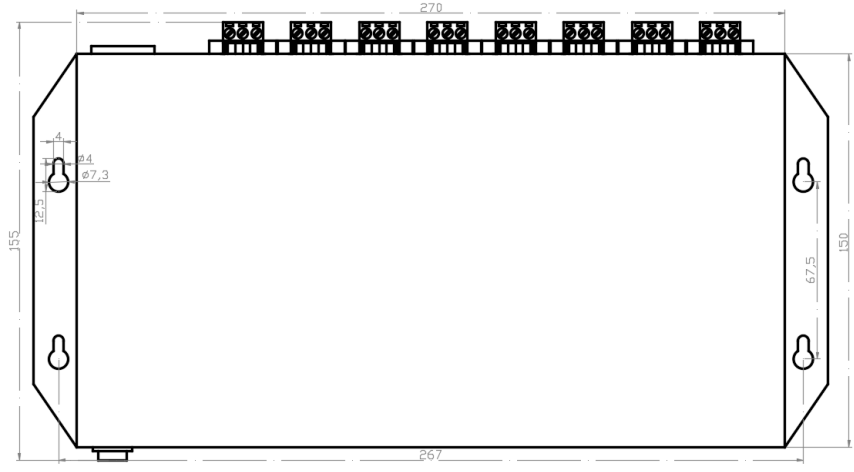

MR-2216D Top View

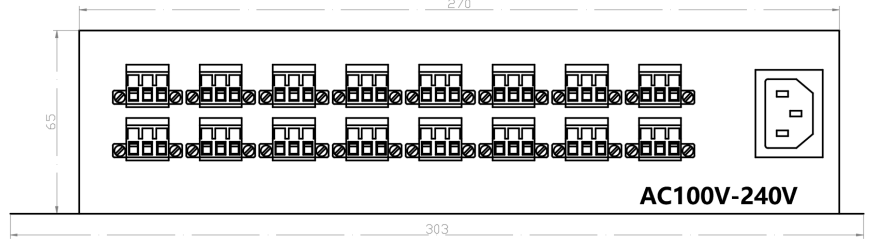

MR-2216D Rear View

Remark:Above Three Views The Size Unit is mm.

IV. Basic Parameter Table

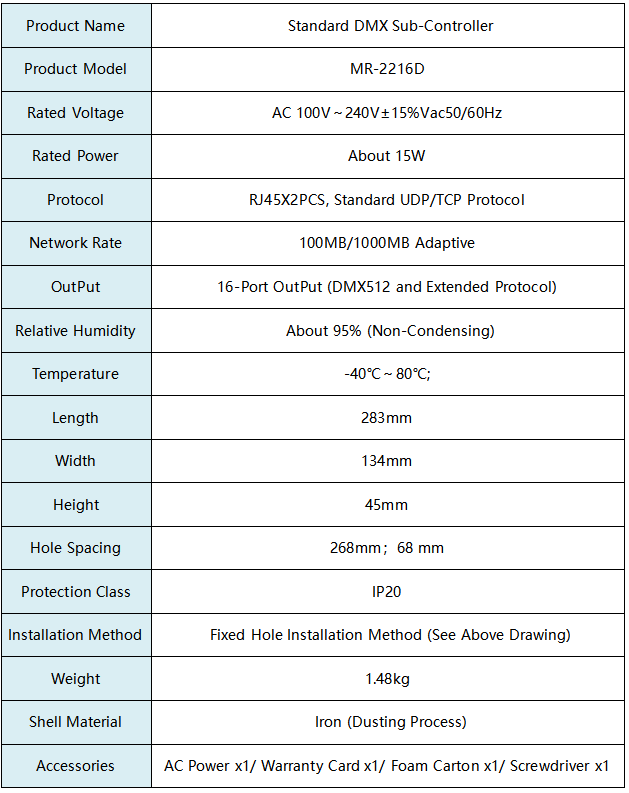

MR-2216D Parameters

Install and Use

I. Online Mode (Connected With The Computer )

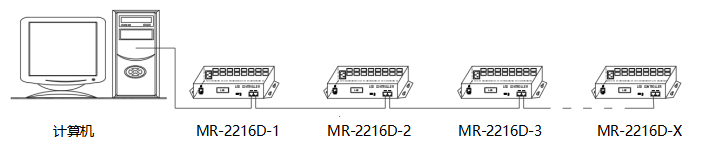

MR-2216D Controllerd Connect With The Computer Ethernet Port,as Shown Below:

MR-2216D Controllerd Connect With The Computer Ethernet Port

II. Offline Mode

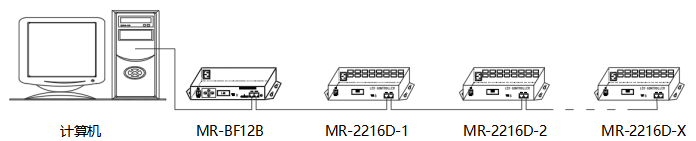

MR-2216Connect With the Offline Master Controller,as Shown Below:

MR-2216D Connect With the Offline Master Controller

III. Integrated Synchronous and Asynchronous Mode

Connect With the Computer and The Main Control (Online Priority. No Signal Switch Offline), as Shown in The Following Figure:

Integrated Synchronous and Asynchronous Mode
