PX01 pixel led light

PX01 pixel led light

RGB led pixel light, dmx512 control, DC24V, transparent PC shell,5-PIN plug
  • Light Type :

    Led pixel Lights
  • Prodcut Code :

    CS-PX01
  • Chip Brand :

    CREE/ EPISTAR
  • Dimension :

    W55x35xH19mm
  • Material :

    Transparent PC cover
  • Rated Power :

    1.2W
  • Light Color :

    RGB
  • Rated voltage :

    24V DC
  • Protection level :

    IP65
  • Warranty time :

    2-3years
  • Product Details
  • Packing&Size

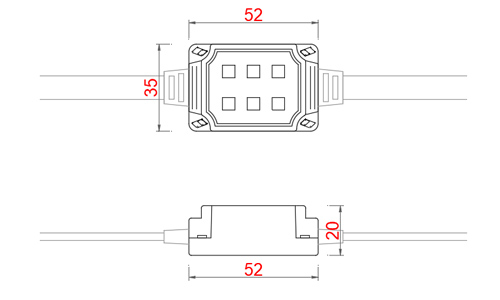

Dimensions

PX01 pixels lights dimensions

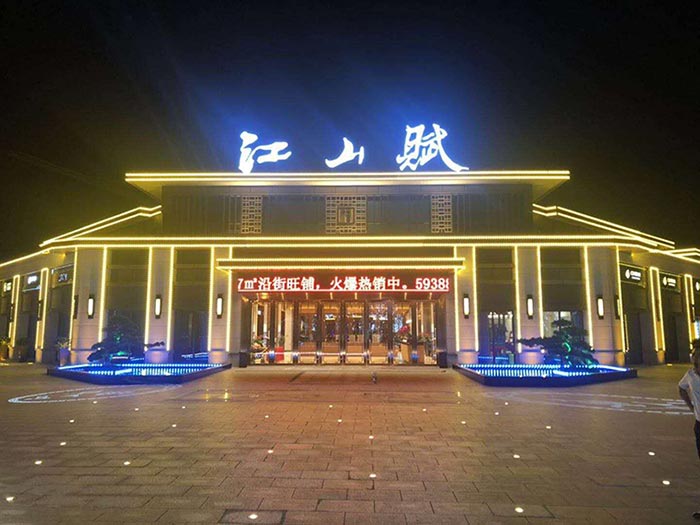

Application

2700K led pixels light for led facade lighting

Specification

Chip brand: Epistar/CREE

Lamp power: 1.2W
Light source: SMD5050
Number of light sources: 6PCS LEDS
Rated voltage: 24V DC
Beam angle: 120 °
Light color: RGB
Operating temperature: -30 ° C-52 ° C
Protection class: IP65
Light source life: 30,000 hours
Warranty duration: 2Years
Light body size: W55x35xH19mm
Case Material: Transparent PC
Circuit board: double-sided wave board
Butt plug: five-core plug
Production process: high-quality PU plastic potting waterproof
Installation: snap-fit installation / wire rope installation
Electrical class: Class III
Illumination mode: RGB full color

Control mode: single line in series
