RGBW 24W led spot light

RGBW 24W led spot light

DMX512 control RGBW led facade lighting, led garden spotlights, led spotlight 18W from Led spotlights supplier or Manufacturer-Shenzhen Cisun lighting Co; Ltd
  • Light Type :

    Led Flood Lights
  • Prodcut Code :

    CS-HY076
  • Chip Brand :

    CREE
  • Dimension :

    ф175*H270mm
  • Material :

    Aluminum+tempered Glass Cover
  • Rated Power :

    18W
  • Light Color :

    Single,RGB
  • Rated voltage :

    AC180~245V or DC24V
  • Protection level :

    IP65
  • Warranty time :

    2-3years
  • Product Details
  • Packing&Size

Specification

Chip Brand: USA CREE
Rated power:18W/24W
Material: aluminum alloy + tempered glass
Light source: 3W/4W high power led
LightsCircuit board: aluminum plate
Number of light sources: 6 PCS
Rated voltage:AC180~245V
Beam angle:10°,20°,30°
Light color: Single or RGB
Working temperature:-30°C-55°C
Protection level:IP65
Life span:30000hrs
Warranty time:2-3Years
Lamp body size:Ф175x270mm
Lamp body color: polyester powder fly ash
Butt plug: three-core rubber line
Production process: resin plastic potting waterproof
Single brightness: 80-90Lm / W
Electrical class: Class I
Luminous mode: always bright, colorful color
Rotation angle:160°

Control method:N/A, DMX512

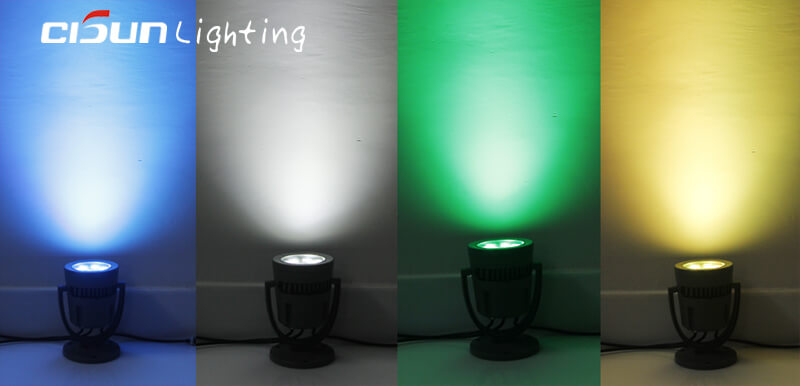

DMX512 rgbw led spot lighting


Order Product Code:

No. ITEM NO LED QTY Light Color Lumens Voltage Wattage Control Dimension Remarks
1 CS-HY076-6Q 6PCS-3W Single ≤1860LM AC85~245V 18W N/A Ф175x270mm CREE-XPG
2 CS-HY076-RGB 6 PCS-3in1 RGB ------ DC24V 18W DMX512 Ф175x270mm Epistar-RGB
3 CS-HY076-RGBW 6PCS-4in1 RGBW ------ DC24V 24W DMX512 Ф175x270mm CREE-XML
