RGBW Pixels LED Lights DMX512 Control

Pixels LED lights is small, exquisite appearance, common indoor and outdoor. Apply to the contour of building, indoor and outdoor LED advertising display; can also be used as indoor decorative light source.

Light type :
Led pixel Lights
Model No. :
CS-PX02
Dimensions :
L50.5xW40xH14.5mm
Material :
ABS + PC cover
Rated voltage :
24V DC
IP rating :
IP65
Warranty :
3 years

Contact Now

Product Details
Packing&Size

◆ Description

· Using DMX signal transmission, manual/automatic addressing
· ABS flame retardant ABS production, more reliable installation performance.
· The installation structure is reasonable,use high-performance LED, good quality, uniform color, higher brightness.
· Weatherproof PU glue is used for potting, high waterproof performance,high and low temperature adaptability,Good corrosion resistance.
· LIGHT SOURCE COLOR: Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)
· CABLE: 3x0.35mm²+2x0.75mm² cable of male & female connector

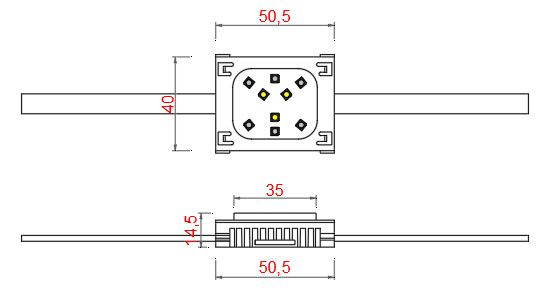

◆ Dimensions:

px02 pixels light dimensions

◆ Specifications

Optical	Lighting Source: 5050SMD LED	Chip Brand: Epistar、CREE、Lumileds
	LED Quantity: 9PCS	Beam Angle: 120°
	Emitting Color: RGBW	Led life: >50000 hours
	Color Temperature: 1600~6500K	CRI: >80 Ra
Electrical	Working Voltage: DC24V	Power Factor: > 0.85
Electrical	Rated Power: 1.8W	Electrical Class: III
Construction	Shell Material: ABS Housing	Cover: Anti ultraviolet PC mask
Construction	Dimensions: 50.5x40x17mm	Installation Method: Surface-mounted
Control	Control Method: DMX512	Gray level: 256x256x256 LV
Other	Ambient Temperature: -30°~+50°	IP rating: IP68

◆ Applications

Hotel,hotel,external decorative lighting,arch bridge,square decorative lighting,courtyard.

◆ Order Product Code

No.	ITEM NO	LED QTY	LED TYPE	Light Color	Voltage	Wattage	Control	Remarks
1	CS-PX02-DMX3	6PCS	3535SMD	RGB	DC12V	1.2W	DMX512	5-PIN plug
2	CS-PX02-DMX4	9PCS	3535SMD	RGB+W	DC15V	1.8W	DMX512	5-PIN Plug
3	CS-PX02-XX	6PCS	3535SMD	1800~6500K	DC24V	1.2W	On/Off	2-PIN plug

Remarks:

CS-PX02-XX XX: Yellow(1800K-2000K), CW(6200K-6500K), W (4000K-4500K), WW(2700K-3000K), Green, Red, Blue.
