street light

street light

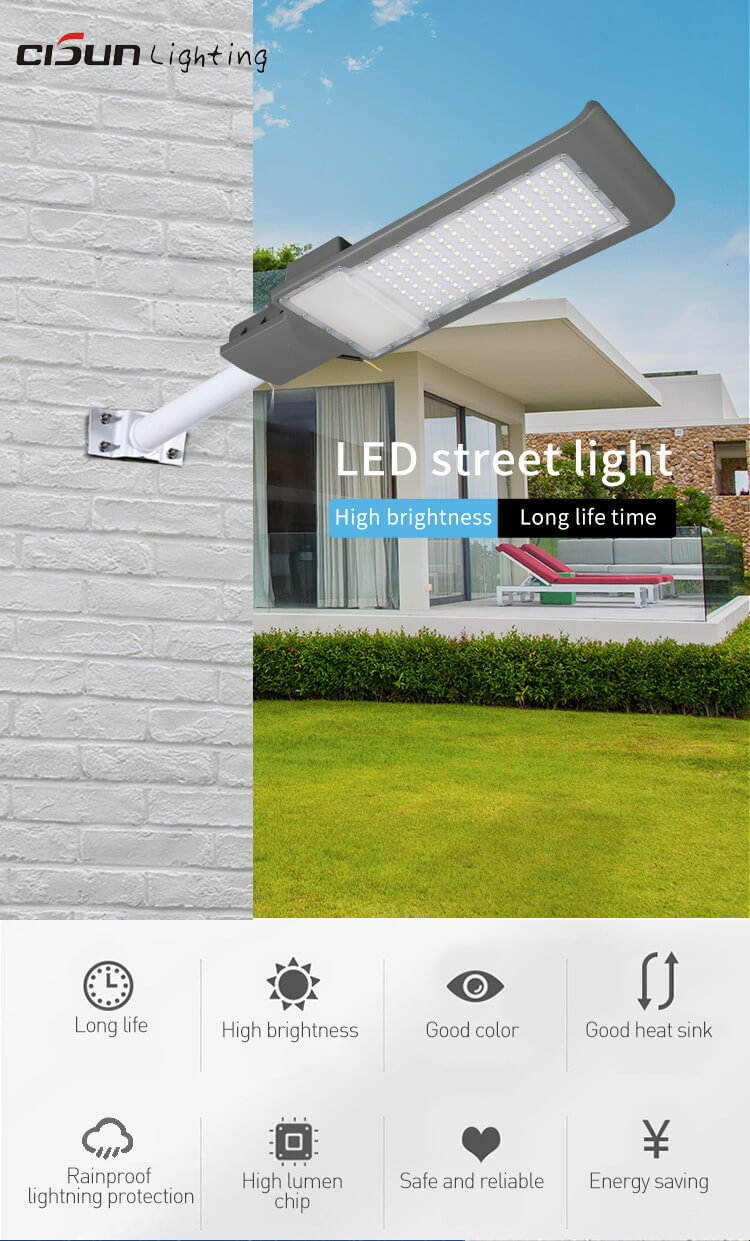

High brightness led street light with lens streetlight 20W 30W 50W 70W 100W led lights outdoor lighting garden
  • Model :

    CS-ST004
  • Power :

    20W/30W/50W/70W/100W
  • Material :

    die-cast aluminum
  • IP Rating :

    IP65
  • Led chip :

    SMD3030
  • Driver :

    Meanwell
  • Warranty :

    3 years
  • Product Details
  • Packing&Size

Product Name Power Item No.    LED Type Lumen Driver PF Lamp Size
LED street light 20W CS-ST004-20W SMD3030 100-130lm/W Isolated     Input 85-265V >0.95 265*112*55mm
LED street light 30W CS-ST004-30W SMD3030 100-130lm/W Isolated     Input 85-265V >0.95 310*135*55mm
LED street light 50W CS-ST004-50W SMD3030 100-130lm/W Isolated     Input 85-265V >0.95 400*165*60mm
LED street light 70W CS-ST004-70W SMD3030 100-130lm/W Isolated     Input 85-265V >0.95 490*190*78mm
LED street light 100W CS-ST004-100W SMD3030 100-130lm/W Isolated     Input 85-265V >0.95 550*215*80mm
