SY308 SD Card Offline led controller

SY308 SD Card Offline led controller

It the Off-line synchronous controller,no need sub controller.This controller can control DMX protocol 8x168 pixels or TTL protocol 8x1024 pixels.
  • Product model :

    CS-SY308
  • Data Input :

    SD Card(8G)
  • Output port :

    8port
  • Protocol :

    DMX512 or TTL
  • Control mode :

    Host controller
  • Product Details
  • Packing&Size

Power Input:AC100~240V

Data Input:SD Card(8G)

Driver Output:Green binding post, RS485×8 or TTL×8

Capacity: 10,240 Pixels (1280×8);

Max power:3W

Working temperature:-15℃~60℃

Cover material:Aluminum alloy

Weight: 1000g (N.W. 850g)

Size:193L×122W×45H mm


 Features

· SD card multi-function controller can realize mobile WIFI/GSM remote control, GPS satellite synchronization, 4G/GPRS city lighting control, etc.

· Support additional functions such as encryption, time control, audio control, voice control, DMX512 signal input and etc.

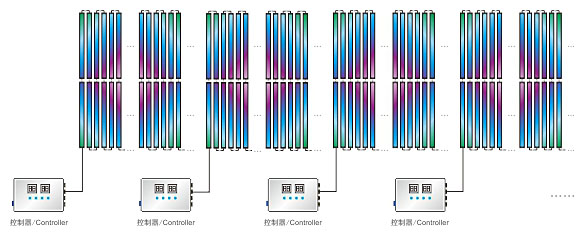

· Support cascade connection. SD card files in different controllers can be intelligently partitioned by the software.


 Applications

led controller,lights controller
