TG021 led spot light

TG021 led spot light

  • Lamp Type :

    LED spot lights
  • Prodcut Code :

    CS-TG021
  • Lighting Color :

    2000K~6500K
  • LED Brand :

    CREE
  • Control Mode :

    ON/OFF
  • Rated Power :

    18W Max
  • Dimension :

    W145*L145*H190mm
  • Product Details
  • Packing&Size

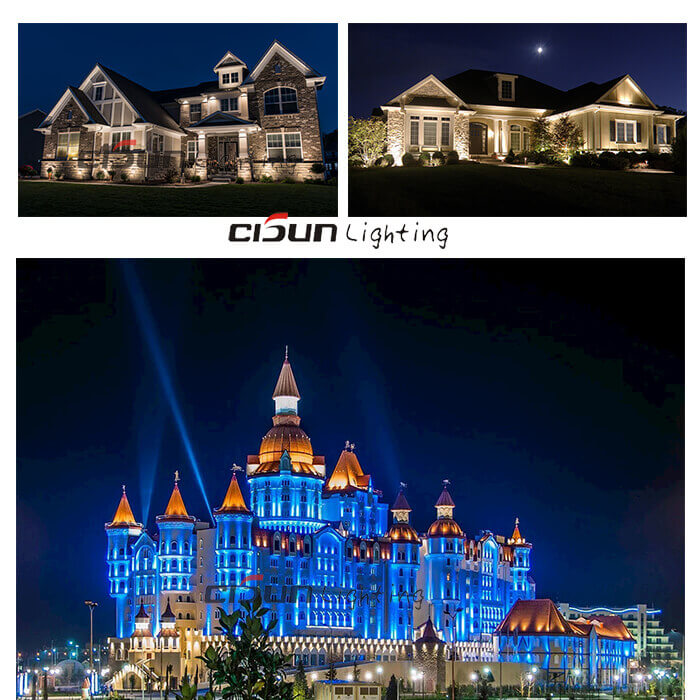

Outdoor LED spot lights apply to buildings facade, bridges lighting, parks landscape lighting, ancient architecture lighting, spot lighting etc.. Different lighting effects can be achieved through light source and control mode, And effective lighting technology for a wide variety of applications. Various mounting options for LED flood lights, plus different beam spread, optical lens ,and anti-glare accessories, With various housing sizes&shapes.


Product Code

TG021-D9-RGB

Lamp type: LED flood lights / Outdoor spot lights

Optical

Lighting Source: XP-E2

LED Brand: CREE

LED Quantity: 9PCS(3R3B3G)

Beam Angle: 10°, 15°, 30°, 45°, 60°

Emitting Color: RGB

Led life: >30000 hours

Luminous Flux:-----

Luminous Efficiency: ------

Electrical

Working Voltage: DC24V

Drive current: ------

Rated power: 9W / 18W

Electrical Class: III

Construction

Shell Material: Die-casting aluminum

Cover: Tempered glass

Treatment process: Aksu powder polyester spraying

Electric Wire: 2-core power Plug + 4-Core signal plug

Dimensions: W145*L145*H190mm

Rotation angle: 180°

Control

Control protocol: DMX512

Gray level: 256x256x256 LV

DMX Channels: 3CH

Other

Ambient Temperature: -20°C~+50°C

IP rating: IP65

Working Humidity: 10 % ~ 90 % RH

Warranty: 3Years

Can be customized AC180V~245V voltage, The color of the lamp housing can be customized.
