led street light style 04

led street light style 04

50W, 100W, 150W, 200W; AC85~264V Input, IP65, Philips Led Chip+Driver
  • Model :

    CS-ST04
  • Material :

    die-cast aluminum
  • IP Rating :

    IP65
  • Led chip :

    Philips
  • Driver :

    Philips
  • Warranty :

    3 years
  • Product Details
  • Packing&Size


 This led street light type has two designs. One is for the SMD led chip, Another one is for the COB led chip.

For SMD led design. You can check it by bellow link: https://www.cslamp.com/products-show/smd3030-good-quality-street-lights.html


Product details :


Item No

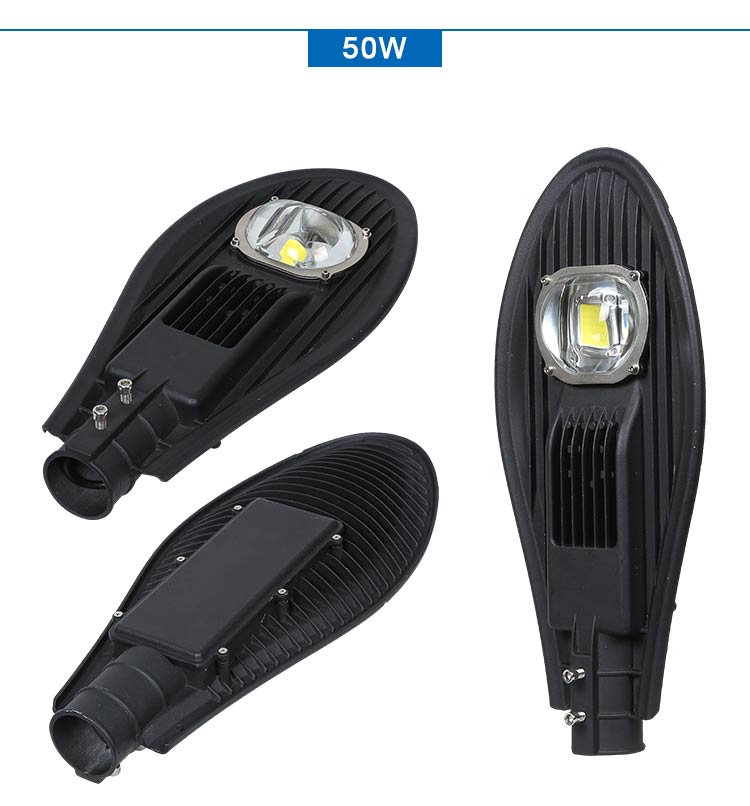

CS-ST04-50W

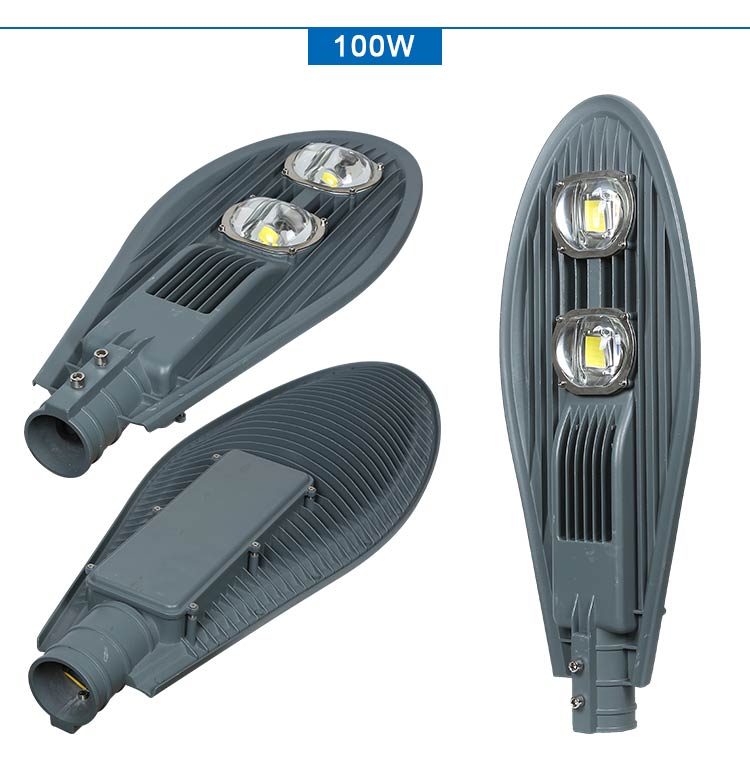

CS-ST04-100W

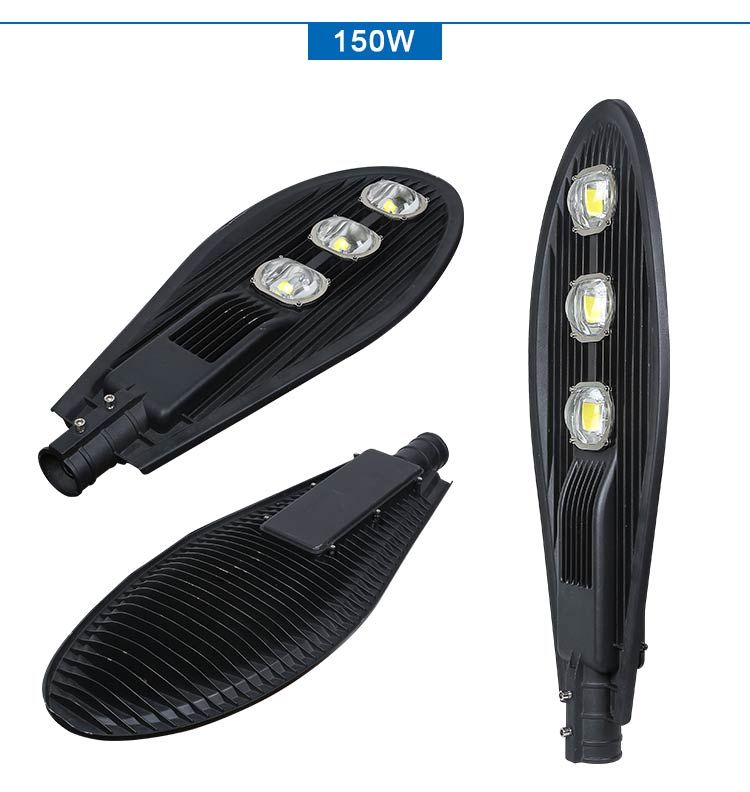

CS-ST04-150W

CS-ST04-200W

Dimension L*W*H(mm)

500*212*63MM

725*280*80MM

855*330*82MM

950*355*87MM

Installation Height

5-6M

7-8M

8-10M

10-12M

Luminous flux

5500LM

11000LM

16500LM

22000LM

LED Type

COB

COB

COB

COB

LEDs qty

1pcs

2pcs

3pcs

4pcs

Material

Aluminum

Aluminum

Aluminum

Aluminum

Install pole diameter

60mm

60mm

60mm

60mm

Beam angle

120°

120°

120°

120°

Power factor

>0.98

>0.98

>0.98

>0.98

CRI

>80

>80

>80

>80

Lifetime

50000hrs

50000hrs

50000hrs

50000hrs

Waterproof

IP65

IP65

IP65

IP65

Color

3000-6000K

3000-6000K

3000-6000K

3000-6000K

Warranty

3years

3years

3years

3years

Packing QTY

1PCS

1PCS

1PCS

1PCS

Packing Size

510*220*90mm

745*290*110mm

880*335*115mm

970*360*115mm



Strong heat dessipation
Aluminum heat dissipation design is adopted to effectively solve the heat dissipation problem and ensure the lamps to be used for a long time.

HIGH QUALITY LED CHIP
High-power outpput, provideing high-brightness illumination, more uniform illumination, Contimuous illumination for 12 hours

Aluminum Housing
Aluminum molding, High temperature baking, Anti-corrosion and anti-tust

IP65 WATERPROOF GRADE
Many times waterproof test,super waterproof
